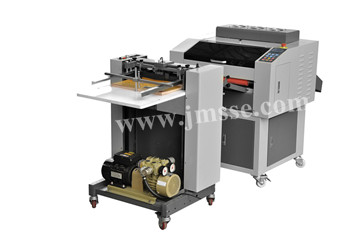

Model:
S-AM18
specification:
Size: 18 inches（480mm）
1.Use auto feeder and transmission system instead of the traditional hand-feed method which speeds up to 40 meters per minute, to ensure productivity, lower labour cost.
2.Axis automatic changer, adopt advanced PLC microprocessor interface control. Auto gear changing to improve the production efficiency of lamination.
3.Can be equipped with UV curing systems or infrared drying device.
4.Modern equipment structure, easy installation and operation.
Max paper size:450*600mm
Min paper size:210*150mm
Paper grams:150~400g/m2
Speed:0~40m/min
Power:1kw
Voltage:AC220V/50HZ
N.W.:170kg
Machine size:1280*74*1000mm
Packing size:1370*815*1040mm
embossing width：480mm
embossing thickness：0.2~2mm
embossing speed：0-10m/min
texture rollers：4pcs
drying way:ultraviolet rays
operation way：electric
voltage：AC220V/50HZ
power：4.2KW
N.W./G.W.：190kg/212kg
machine size:870*850*1010mm
packing size:780*890*1250mm
package: wooden case |
