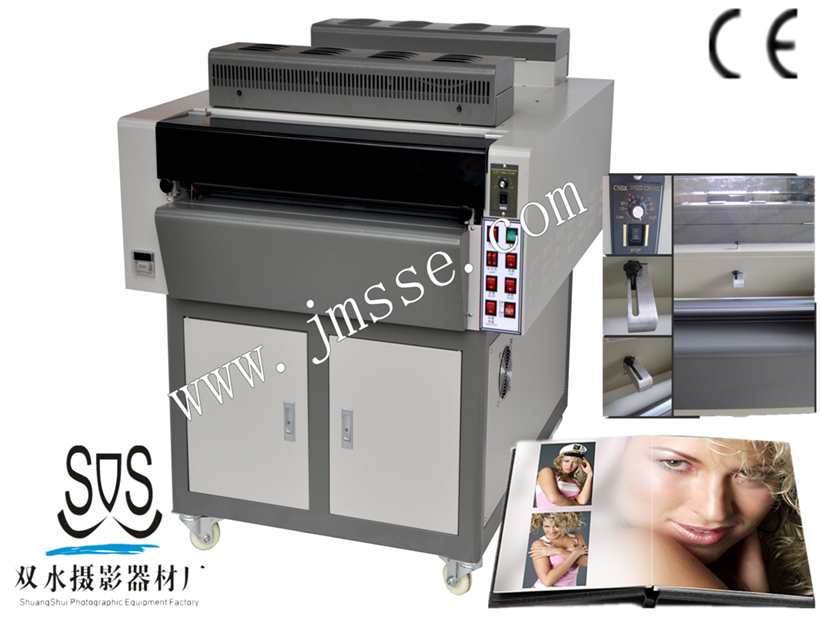

Model:
S-GL24
specification:
1. with UV and IR light curing system, be suitable for water-based liquid , glossy and matt uv liquid .
2. with temperature heating system, and extended leveling roller configuration, the product can make shinier ,clearer
3. with the latest special design, not only the paper can be coated, but also the woodblock . the thickness is 0~20mm. this is the latest design on the woodblock photo market now.
4. with product pushing forward system, the surface thickness of product after coating is 20 times than that of the ordinary uv coating machine on the market.
Size: 18 inches£¨480mm£© 24 inches£¨650mm£©24 inches with extended design(650mm)
¡ôcoating width£º650mm
¡ôcoating thickness£º0.2~2mm
¡ôcoating speed£º0-7.7m/min
¡ôdrying way:ultraviolet rays/ultrared rays
¡ôoperation way£ºelectric
¡ôvoltage£ºAC220V/50HZ
¡ôpower£º5.9KW
¡ôN.W/G.W£º189kg/209kg
¡ômachine size£º970*1150*1100mm
¡ôpacking size£º1160*1130*1200mm=1.57
¡ôpackage: wooden case |
