Model:
S-A7
specification:

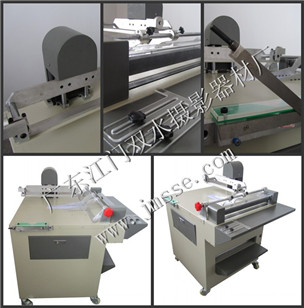

machine has seven functions : creasing ,binding ,pressing ,
cover making ,edge holding ,cover corner cutting and grooving
1.Delicate design for exporting .Multi-dimensional platform
can be worked at the same time with high efficiency .Combine
electric with pneumatic ,easy operation and make sure the albums
without deformation ,tackless and crack
2.Cover making with Trilateral ruler measurement and accurate position
3.The creation of the cover cutter,can help the customers to cut
the angle accurately
4.Aluminium alloy knife,can be creased with delicate marks and not
easy to be broke
5.Grooving ,about temperature ,pressure ,grooving location can be
adjusted according to the customers
6.Digital temperature control instrument , simple operation and
constand temperature automatically ,low cost and maintainance is accepted
¡ôCreasing width £º510mm
¡ôCreasing paper £º400-500g
¡ôTrimming thickness£º5cm
¡ôPressing size£º550*380mm
¡ôPressing heigth £º20cm
¡ôPower supply £ºAC220V/50HZ
¡ôPower :0.67KW
¡ôAlbum cover size £º10*24 inches
¡ôEdge holding width £º615mm
¡ôNet weigth£º 134kg
¡ôGross weigth£º154kg
¡ôMachine size £º760*1000*1070
¡ôPackagesize:820*1000*1150
¡ôPackage £ºPlywood case
