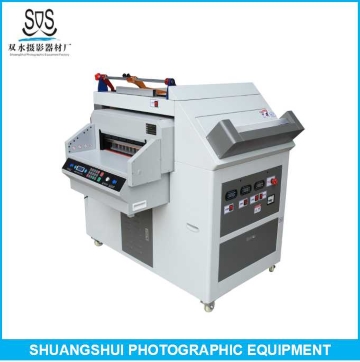

Model:
S-A14
specification:
machine has fourteen functions : Creasing ,heat&cold binding ,heat&cold pressing ,CNC cutting ,corner cutter ,cover making ,edge holding ,cover corner cutting ,grooving and heat trimming,18L air pump,wrap angle.
1. The international export appearance design, cabinet and delicate, could enter the door of more than 80 cm wide. Multiple platform can operate at the same time, can improve the work efficiency and simple operation.
2. The biggest can do 18 x 24 inch photo albums, can also make the mickey photo album, photo albums, the bible crystal photo albums, magazines, recipes, etc.
Creasing paper £º100-550g
Trimming thickness£º5cm
Trimming width :510mm
Trimming size£º550*400mm
Pressing heigth £º20cm
Temperature range £º0-100¡ã
Cutting width £º460mm
Cutting accuracy£ºless than 0.1mm£¨infrared collation£©
Power supply £ºAC220V/50HZ
Power£º3KW
Corner cutter £ºR3-R10
Album cover size£º18inches-24 inches
Edge holding width £º670mm
Cover corner cutting size £º23mm*5mm
Grooving width: 520mm
Net weigth £º405kg
Gross weigth£º460kg
Machine size: 1470*720*1250mm
Packing size:1480*1170*1460mm
Package £ºPlywood case |
