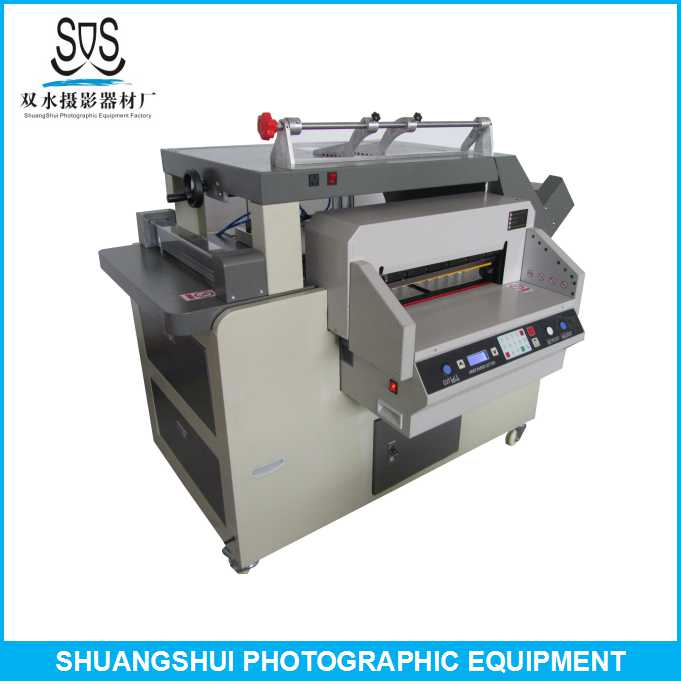

Model:
S-A10
specification:
machine has eleven functions : Creasing ,binding ,heat&cold pressing ,CNC cutting ,corner cutter ,cover making ,edge holding ,cover corner cutting ,grooving and heat trimming .
1.Delicate design for exporting .Multi-dimensional platform can be worked at the same time with high efficiency .Combine electric with pneumatic ,easy operation and make sure the albums without deformation ,tackless and crack
2.Cover making with Trilateral ruler measurement and accurate position
3.The creation of the cover cutter,can help the customers to cut the angle accurately
4.One machine combine making inner sheets with cover of the albums.The CNC cutter with infrared ray to collate and exquitsite function
5.The creasing knife is aluminium alloy , can be creased with delicate marks and not easy to be broke
6.With cold and heat pressing just up to the customers' demand
7.Grooving ,about temperature ,pressure ,grooving plocation can be adjusted according to the customers
8.Digital temperature control instrument , simple operation and constand temperature automatically ,low cost and maintainance is accepted
9.Binding with double-side aluminium keep heating and albums are not be transformative
¡ôCreasing width £º530mm
¡ôCreasing paper £º400-500g
¡ôTrimming thickness£º5cm
¡ôTrimming width :510mm
¡ôTrimming size£º550*400mm
¡ôPressing heigth £º20cm
¡ôTemperature range £º0-100¶È
¡ôCutting width £º460mm
¡ôCutting accuracy£ºless than 0.1mm£¨infrared collation£©
¡ôPower supply £ºAC220V/50HZ
¡ôPower£º3KW
¡ôCorner cutter £ºR3-R10
¡ôAlbum cover size£º18inches-24 inches
¡ôEdge holding width £º670mm
¡ôCover corner cutting size £º23mm*5mm
¡ôGrooving width: 520mm
¡ôNet weigth £º405kg
¡ôGross weigth£º460kg
¡ôMachine size: 1470*1080*1250
¡ôPacking size:1560*1210*1430=2.7
¡ôPackage £ºPlywood case |
